1989 Chevy Truck
This shows a side view of the amp rack and the sub enclosure in the bed of the truck.
|
Amprack (below) was installed in the back of a Tahoe. Two Kicker amps and an Audio Control crossover. The heatsink insert was removable to reveal the fuse box hidden underneath. |
|
|
|
The cut through (above)
A tunnel was made out of mdf to make the cut through look better cosmetically. An Audio Control eqt is located on each side of the tunnel. |
The interior >>>
In this picture, you can see the custom center console, the Horn-loaded compression drivers under the dash, and the custon kickpanels for the Crystal 6 1/2's. |
|
|
|

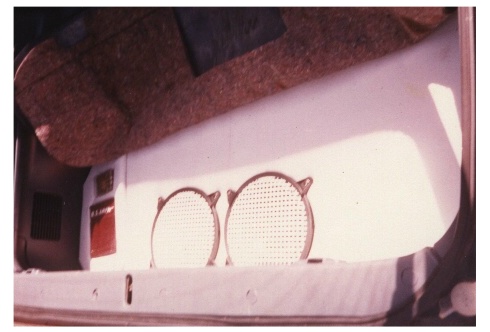

<<< 1989 Subaru
Two US Amps 25 watt amps and two Petras 10" woofers were installed in a shallow well in the trunk. The top was then covered in white vinyl. When the carpet was in place, there was sign of the system. |

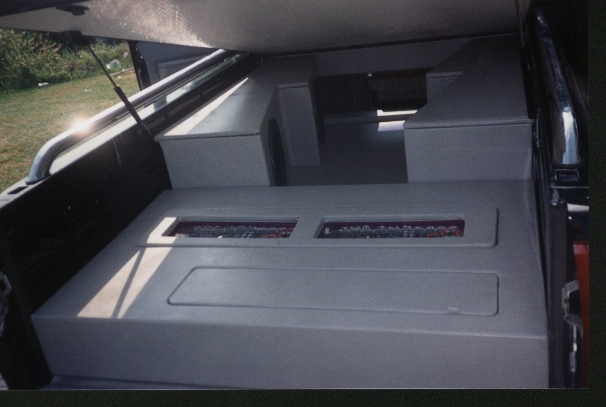

Custom motorized amp rack >>>
This shows the custom amp rack in the back of the truck. The two US Amps are mounted under glass, showing the circuit boards of each one. This shows the amount of work that actually went into the bed of the truck. |
|
|
|

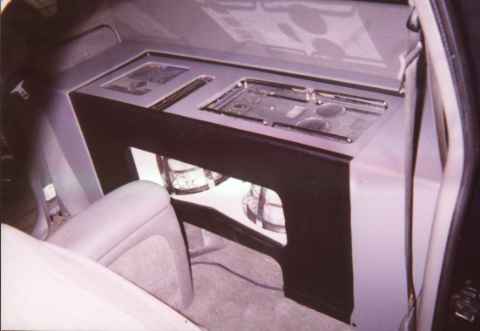

<<< Custom box and amprack
Two Audiobahn 10" woofers are mounted in a down-firing box. A huge Audiobahn amp was mounted in the rack along with a midrange amp and a 1 farad cap. |

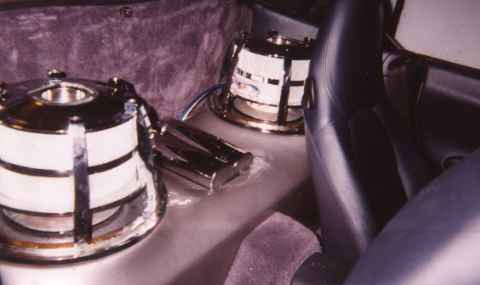

Porsche enclosure (below)
Two Audiobahn 12" woofers, and two 1 farad caps sit in the top of this fiberglass enclosure. Two memphis 1000 watt class d amps are hidden in channels in the front of the enclosure. |
|
|
|
Open view of amp rack (above)
When the rack is open, the amps heatsinks and the crossover are visible. There are locations in the floor for adding capacitors. |

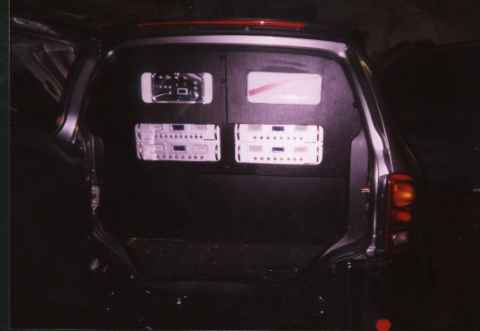

Amprack in an Isuzu Vehicross >>>>
This was the third install for the Soudjamz car stereo company. All Audiobahn components were used. Four rack-mounted amplifiers and a crossover were installed in the wall. Four 8-volt batteries were installed behind a false panel under the amps. |
|
|
|

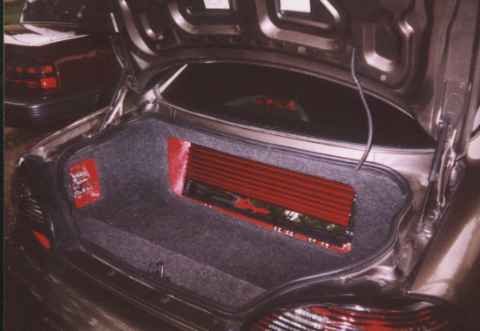

<<<< Dragster of America demo vehicle.
Two 15" Dragster subs were mounted in a down-firing box. A 1200 watt Dragster amp was used to power the subs. Another Dragster amp was mounted in the passenger side panel to power the Dragster mids and highs. Since the vehicle was a daily driver, the spare was left in the well. A panel was put in the floor to gain access to the spare and the jack tools. A Dragster fuse block was mounted on the driver side panel to protect the amps. The entire trunk was covered in heavy-duty trunk liner to keep wear and tear to a minimum. |

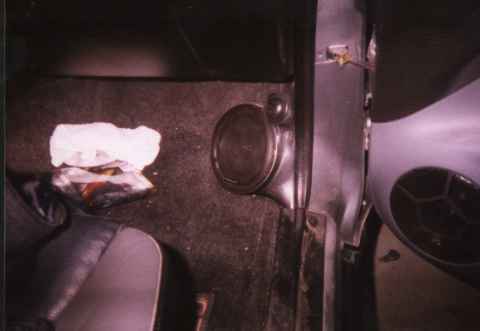

Custom kick panels in Isuzu Vehicross >>>>
An Audiobahn 6 1/2" component set was installed in these custom-formed kick panels. They were then textured in grey paint. |
|
|
|

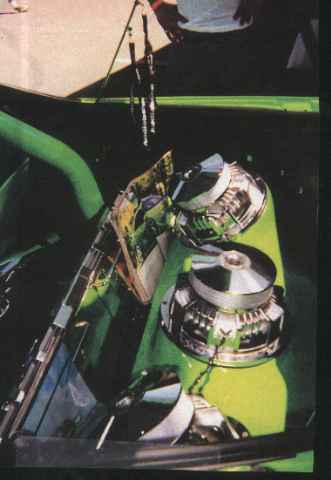

<<<< Custom enclosure for an Eclipse
This is a fiberglass enclosure that was built for three Audiobahn 10" woofers. The enclosure was painted to match the cars. |
Custom wall in Isuzu Vehicross >>>>
Three Audiobahn 15" woofers were installed in this enclosure. The open area around the subs was the port for the enclosure. The entire enclosure was painted inside and out with bed liner. |
|
